FACILITIES AND CAPACITY
Seven departments in one integrated complex at Paget, with access for heavy dimensional loads up to 10 m wide, 10 m high and 35 m long.
Headline figures
9,000 m²
Industrial building complex30,000 m²
Hardstand storage area150 t
Factory crane lift capability12 m
Under hook lift height
ONE COMPLEX, SEVEN DEPARTMENTS
Our main location is a 9,000 m² heavy industrial building complex with a combined 30,000 m² of hardstand storage. It also holds abrasive blast and paint rooms, a vehicle maintenance facility and the administration offices.
The complex is fully integrated for maximum efficiency, moving work between all seven major departments under one very large roof, with access for heavy dimensional loads up to 10 m wide, 10 m high and 35 m long.
The fabrication building alone runs 90 m long by 30 m wide by 16 m high, with four dragline bucket arch pits set into the floor.
LIFT, POWER AND ACCESS
Our high clearance factory cranes allow for 12 m under hook lift height with 150 tonne lift capability, so heavy components are lifted, turned and set down inside the building.
Our Commercial Avenue property has the largest 11 kV electrical power capacity at Paget, with our own switchyard and a range of transformer capacities including 3.3 kV to power up underground mining plant.

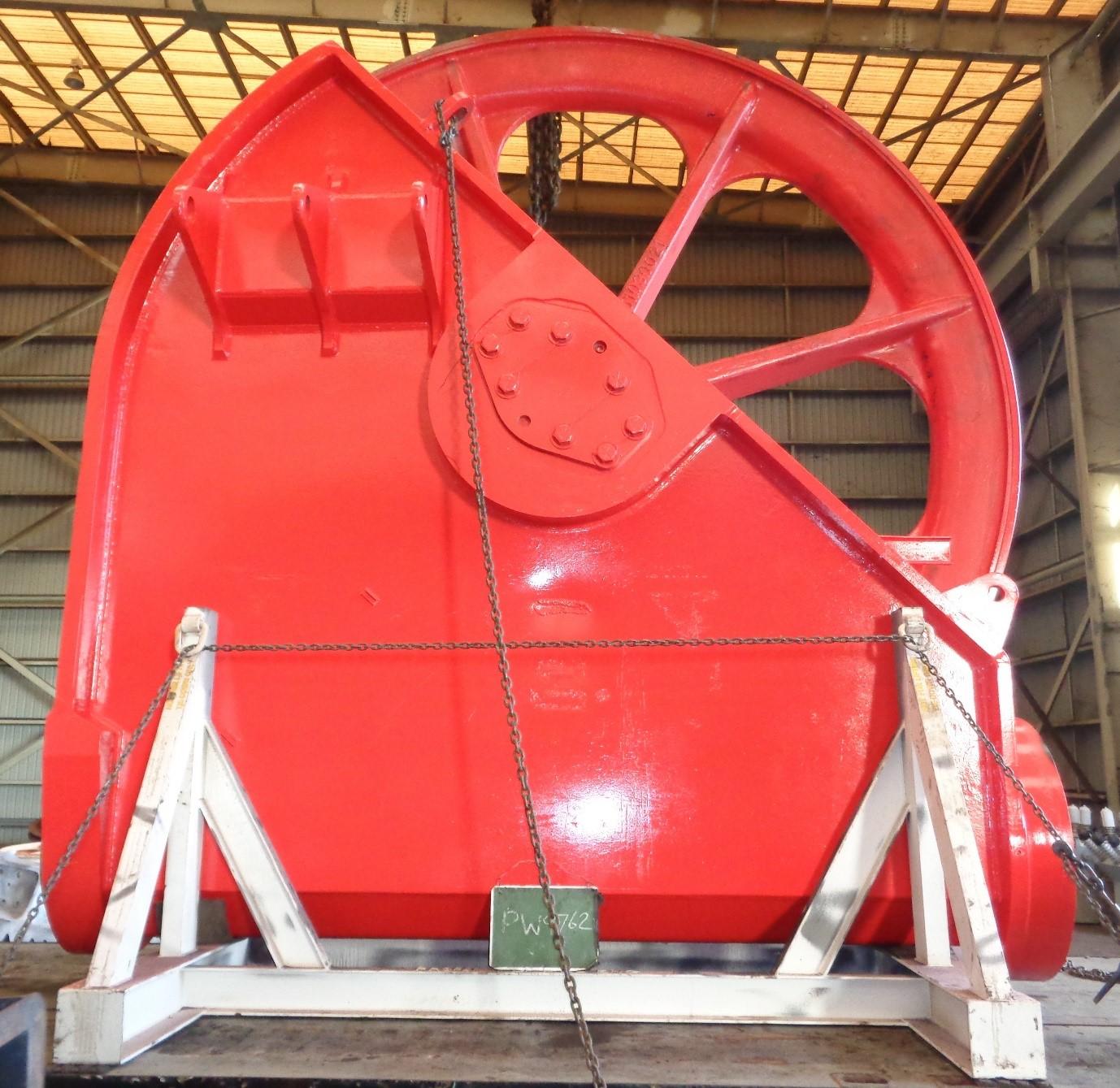

Between the lift height, the lift capacity and the dimensional access, the complex takes dragline propel gear cases, large diameter slew bearings, rope drums and sheaves, and upper frame modules.
THE NUMBERS
Every figure below is published by ABC Heavy Engineering for the Paget complex.
Industrial building complex
9,000 m² under one roofHardstand storage
30,000 m² combinedFabrication building
90 m × 30 m × 16 m highMaximum dimensional load
10 m wide × 10 m high × 35 m longFactory cranes
150 t lift at 12 m under hook heightElectrical supply
11 kV, the largest power capacity at PagetSwitchyard
Our own, on the Commercial Avenue propertyTransformers
A range of capacities including 3.3 kV for underground mining plantDragline bucket arch pits
4 pits in the fabrication buildingFinishing
Abrasive blast and paint rooms on siteSupport facilities
Vehicle maintenance facility and administration officesDepartments
Seven, fully integrated in the one complex
