ENGINEERING
SolidWorks 3D modelling and FEA to design new products and reverse-engineer parts no longer supported by the OEM, drafted to AS1100 for the trades next door.
DESIGN, MODELLING & ANALYSIS IN-HOUSE

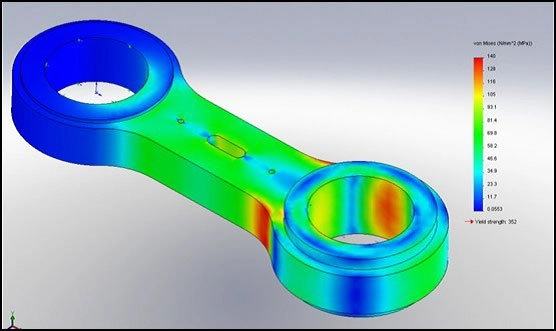

Our engineering department uses SolidWorks 3D modelling and FEA structural analysis to design new products and to reverse-engineer parts that are no longer supported by the OEM. Conceptual and workshop drawings are produced for the trades next door, so a design becomes a finished component without leaving the building.
Where a part keeps failing, we redesign it. Design optimisation that removes the stress concentrations that cause failures, then validates the change before any steel is cut.
TO RECOGNISED STANDARDS
Analysis and drafting run to recognised standards, with output that the workshop and the client can both rely on.
TOOLS & STANDARDS
3D modelling
SolidWorksStructural analysis
Finite element analysis (FEA)Drafting standard
AS1100Drawings
Conceptual and workshop drawingsSpecialties
Reverse engineering and design optimisation
RELATED WORK
Machining
A reverse-engineered part is drafted to AS1100 and cut on CNC plant in the same building.
OpenSteel Fabrication & Welding
Conceptual and workshop drawings go to the boilermakers next door, so a design becomes a weldment without leaving the complex.
OpenLarge Diameter Slew Bearings
FEA validates a redesigned bearing component before any steel is cut on the rebuild.
