MACHINING
CNC boring, turning and gear cutting sized for the heaviest mining components, with workpieces to 150 tonnes and gears to 5.5 m diameter.
13 M OF BORER TRAVEL, WORKPIECES TO 150 TONNES

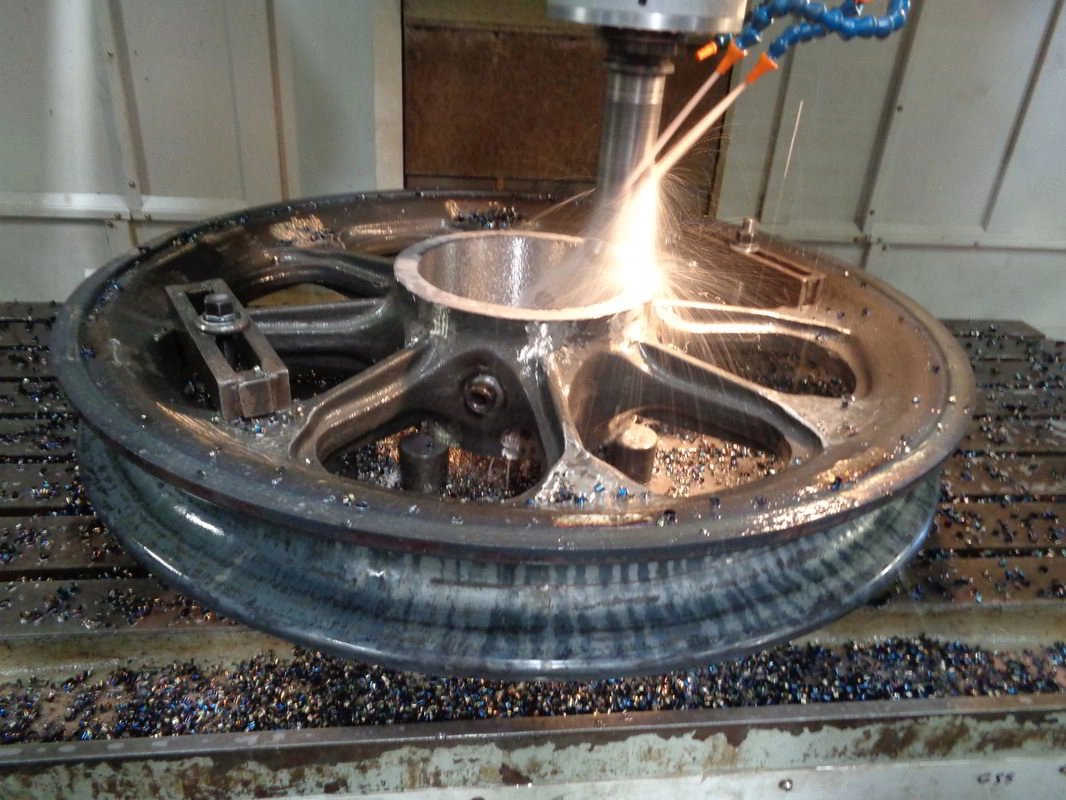

Our machine shop is built around CNC plant sized for the heaviest mining components, a floor borer with 13 m of travel and a 6 m column that takes workpieces to 150 tonnes. From boring and turning to internal and external gear cutting, we machine slew bearings, rope drums and sheaves, gear cases, shafts and structural assemblies in one pass through the building.
Detailed QA packages can be provided with all work completed, every critical dimension measured, recorded and signed off.
BEYOND THE HEADLINE PLANT
A complete range of CNC and conventional machines, long-bed machine, mills, planers, machining centres, lathes and radial-arm drills, backs the headline plant below.
THE MACHINE LIST
CNC floor borer
13 m travel, 6 m column, to 150 tCNC floor borer, turning
5 m column height, 60 t table capacityCNC vertical borer
5 m diameter, 18 t tableTwin-post vertical borer
3.5 m diameter, 18 t tableCNC lathes
Workpieces over 40 tCNC long bed lathe
Heavy duty, large diameterCNC machining centres
High speed, fully automatedCNC gear cutting
Internal and external gears to 5.5 m diameterConventional plant
Lathes, radial arm drills and specialised toolingDetailed QA packages
Provided with all completed work
RELATED WORK
Induction Hardening & Heat Treatment
A re-machined raceway is case hardened to 60 HRC at 3 to 15 mm case depth before it goes back on the machine.
OpenIndustrial Painting
A finished component is blasted and coated to industrial or marine specification without leaving the building.
OpenFitting
Machined shafts, bearings and gears go straight to the fitters for assembly to OEM specification.
OpenCOMMON QUESTIONS
What is the largest workpiece you can machine?
The CNC floor borer takes workpieces up to 150 tonnes, with 13 m of travel and a 6 m column. In turning it works to a 5 m column height with a 60 tonne table capacity.
Are QA packages provided?
Yes. Detailed QA packages can be provided with all work completed, every critical dimension measured, recorded and signed off.
Can you cut internal gears?
Yes. CNC gear cutting covers internal and external gears to 5.5 m diameter.
